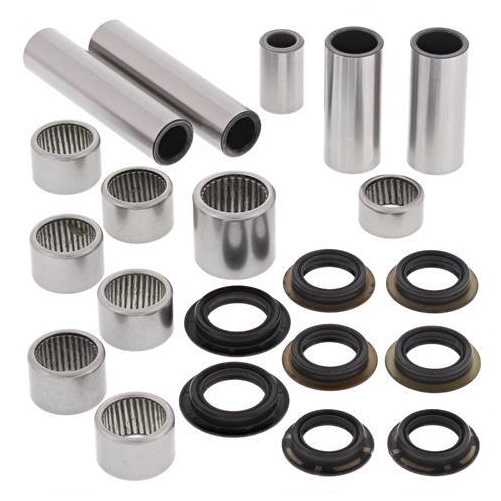

Swing Arm Linkage Bearing Kit

Need Extras?

Action Grease - White+PTFE 100GRM Tube (74116)

$14.00

Add this

Calculate Shipping

52199 Bearing Steel Hardened and Precision Ground

Description

Needle Bearings - 52100 bearing steel ARC61-65 heat treated ST13 steel shell
Bushing - Case Hardened and plated to prevent wear and corrosion
All Balls linkage kits include the lower shock bearing, but not the upper shock bearing.

WARNING - This is a Swing Arm Linkage kit. It only contains the bearings needed for the LINKAGE. It does not have the bearings for the SWING ARM. If you need bearings for the swing arm you will also need to purchase a SWING ARM BEARING KIT

Specifications

2x Seal (40-4082) 19.5mm ID x 34mm OD
4x Seal (40-4100) 17mm ID x 30mm OD
2x Seal (40-4159) 15mm ID x 27.8mm OD
1x Needle Bearing (40-3020) 16mm ID x 22mm OD x 12mm L
1x Needle Bearing (40-3048) 20mm ID x 27mm OD x 26mm L
6x Needle Bearing (40-3009) 18mm ID x 24mm OD x 16mm L
1x Needle Bearing Shaft (40-2305) 10mm ID x 16mm OD x 26.5mm L
2x Needle Bearing Shaft (40-2160) 15mm ID x 20mm OD x 48mm L
2x Needle Bearing Shaft (40-2298) 12mm ID x 18mm OD x 77.5mm L
