Swing Arm Linkage Bearing Kit

Need Extras?

Action Grease - White+PTFE 100GRM Tube (74116)

$14.00

Add this

Calculate Shipping

52126 Bearing Steel Hardened and Precision Ground

Description

Needle Bearings - 52100 bearing steel ARC61-65 heat treated ST13 steel shell
Bushing - Case Hardened and plated to prevent wear and corrosion
All Balls linkage kits include the lower shock bearing, but not the upper shock bearing.

WARNING - This is a Swing Arm Linkage kit. It only contains the bearings needed for the LINKAGE. It does not have the bearings for the SWING ARM. If you need bearings for the swing arm you will also need to purchase a SWING ARM BEARING KIT

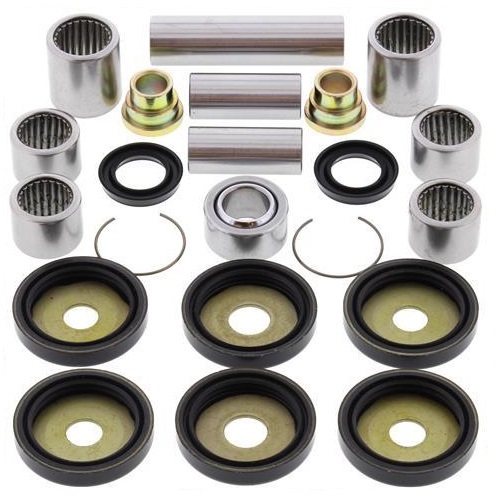

Specifications

2x Snap Ring (40-6010)
1x Spherical Bearing (40-5013-1) 19mm ID x 31mm OD x 18mm L
2x Seal (40-4034) 12mm ID x 40.3mm OD
4x Seal (40-4033) 10mm ID x 40.3mm OD
2x Seal (40-4028) 16mm ID x 26mm OD
2x Needle Bearing (40-3023) 16.5mm ID x 23.6mm OD x 26mm L
4x Needle Bearing (40-3022) 15.3mm ID x 22.3mm OD x 17mm L
1x Needle Bearing Shaft (40-2016) 12mm ID x 16.5mm OD x 63mm L
2x Needle Bearing Shaft (40-2002) 10mm ID x 15mm OD x 36mm L
2x Bushing (40-1008) 10mm ID x 20mm OD x 14.5mm L
