52111 Bearing Steel Hardened and Precision Ground

Description

Needle Bearings - 52100 bearing steel ARC61-65 heat treated ST13 steel shell
Bushing - Case Hardened and plated to prevent wear and corrosion
All Balls linkage kits include the lower shock bearing, but not the upper shock bearing.

WARNING - This is a Swing Arm Linkage kit. It only contains the bearings needed for the LINKAGE. It does not have the bearings for the SWING ARM. If you need bearings for the swing arm you will also need to purchase a SWING ARM BEARING KIT

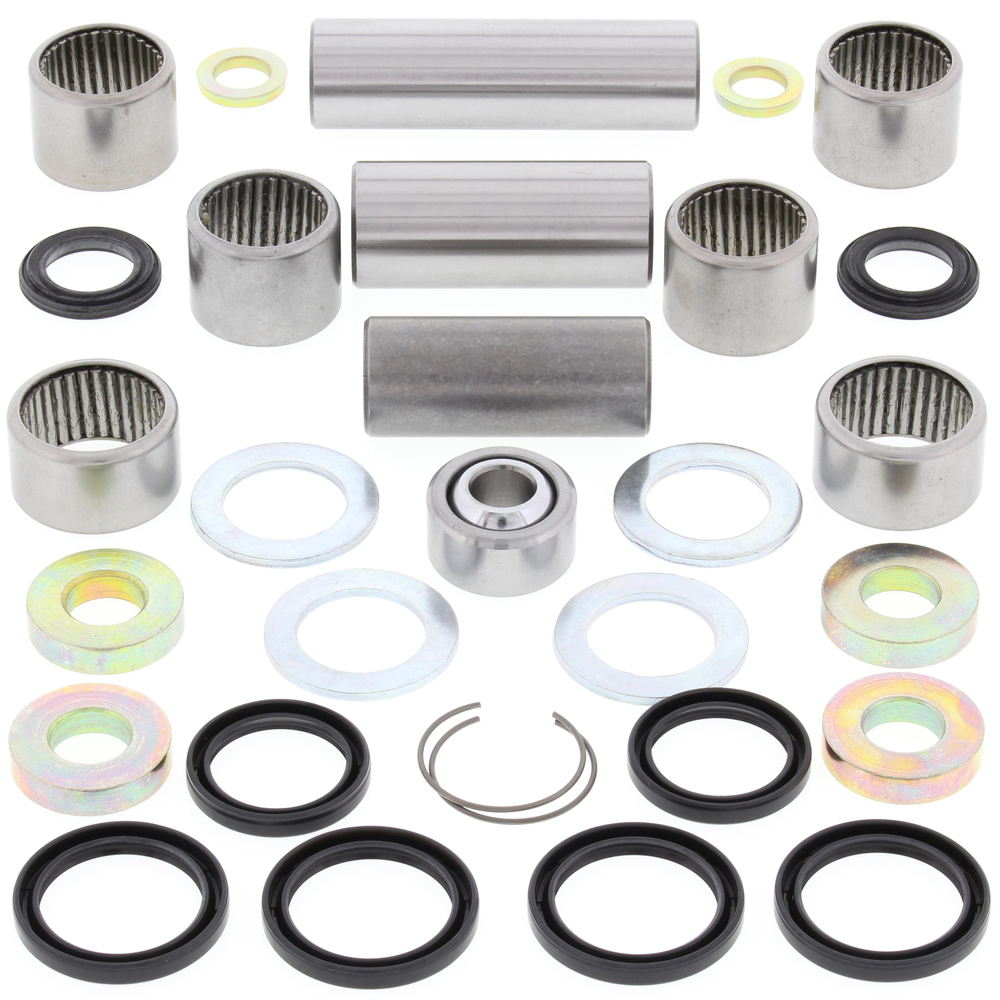

Specifications

4x Washer (40-6012) 20.3mm ID x 30.7mm OD
2x Snap Ring (40-6008)
1x Spherical Bearing (40-5002-2) 10mm ID x 24mm OD x 14.5mm L
4x Seal (40-4015) 24mm ID x 32mm OD
2x Seal (40-4005) 15mm ID x 24.5mm OD
2x Seal (40-4012) 21mm ID x 28mm OD
2x Needle Bearing (40-3027) 23mm ID x 28mm OD x 16mm L
4x Needle Bearing (40-3013) 21mm ID x 26mm OD x 20mm L
1x Needle Bearing Shaft (40-2041) 14mm ID x 22mm OD x 51mm L
1x Needle Bearing Shaft (40-2025) 12mm ID x 20mm OD x 69mm L
1x Needle Bearing Shaft (40-2020) 12mm ID x 20mm OD x 47mm L
4x Bushing (40-1013) 12mm ID x 25mm OD x 5.5mm L
2x Bushing (40-1010) 10mm ID x 16mm OD x 2.7mm L
