52108 Bearing Steel Hardened and Precision Ground

Description

Needle Bearings - 52100 bearing steel ARC61-65 heat treated ST13 steel shell
Bushing - Case Hardened and plated to prevent wear and corrosion
All Balls linkage kits include the lower shock bearing, but not the upper shock bearing.

WARNING - This is a Swing Arm Linkage kit. It only contains the bearings needed for the LINKAGE. It does not have the bearings for the SWING ARM. If you need bearings for the swing arm you will also need to purchase a SWING ARM BEARING KIT

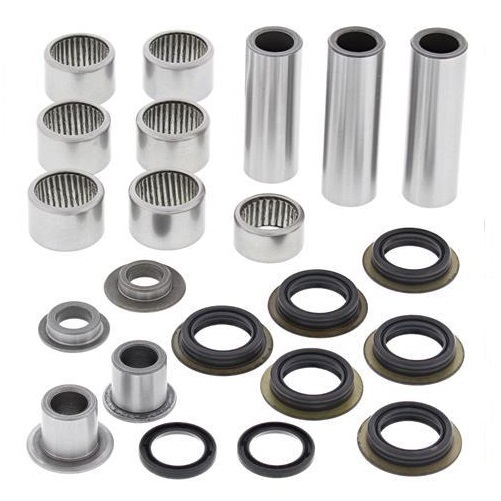

Specifications

x6 Seal (40-4100)
x2 Seal (40-4004)
x1 Needle Bearing "FULL COMPLEMENT" (40-3020) 16mm ID x 22mm OD x 12mm L
x6 Needle Bearing "FULL COMPLEMENT" (40-3009) 18mm ID x 24mm OD x 16mm L
x1 Needle Bearing Shaft (40-2157) 10mm ID x 16mm OD x 25mm OVD x 16.5mm L
x1 Needle Bearing Shaft (40-2092) 12mm ID x 18mm OD x 49mm L
x1 Needle Bearing Shaft (40-2296) 10mm ID x 16mm OD x 21.5mm OVD x 16.5mm L
x1 Needle Bearing Shaft (40-2093) 10mm ID x 16mm OD x 25mm OVD x 5.5mm L
x1 Needle Bearing Shaft (40-2144) 10mm ID x 16mm OD x 21.5mm OVD x 5.6mm L
x2 Needle Bearing Shaft (40-2079) 12mm ID x 18mm OD x 57mm L
