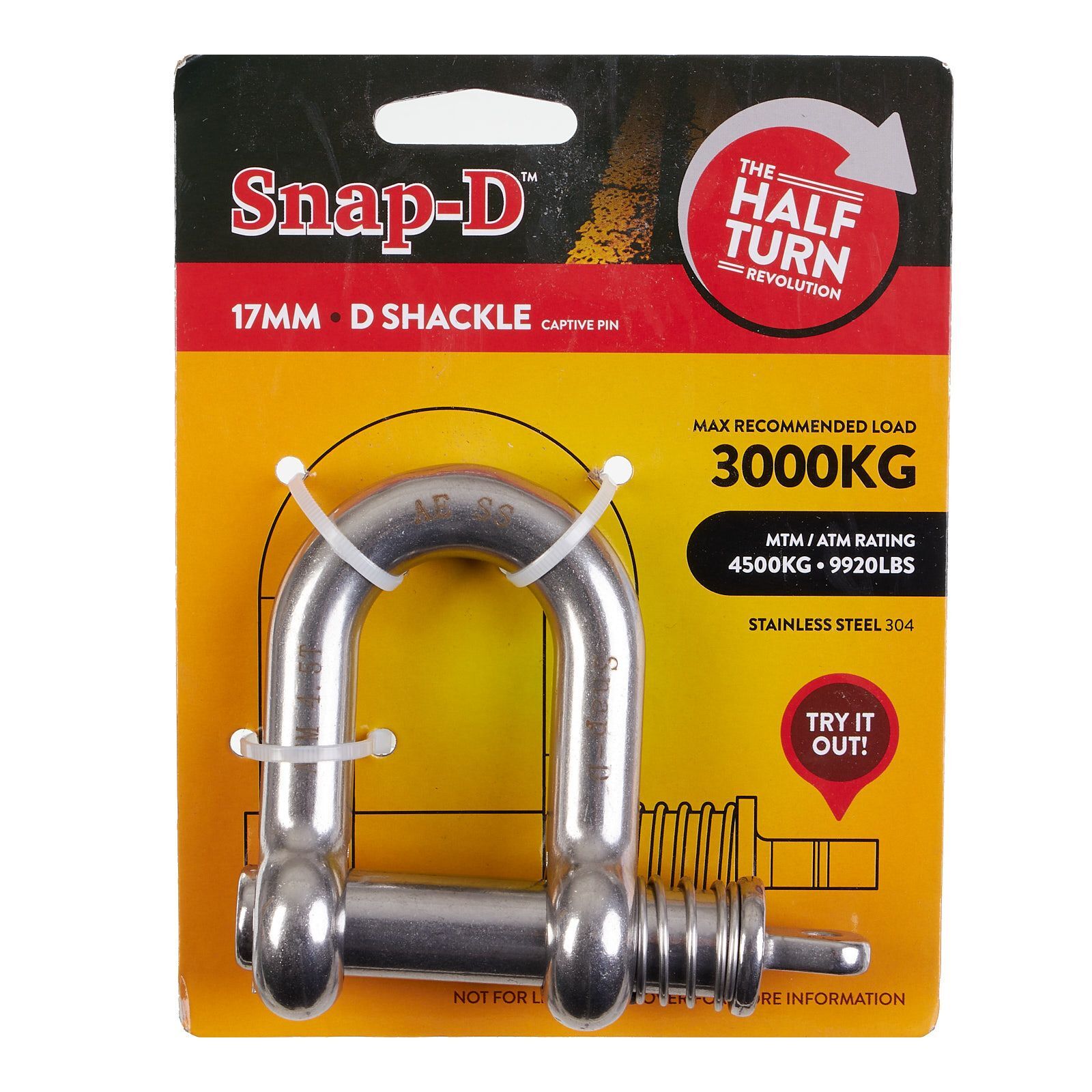

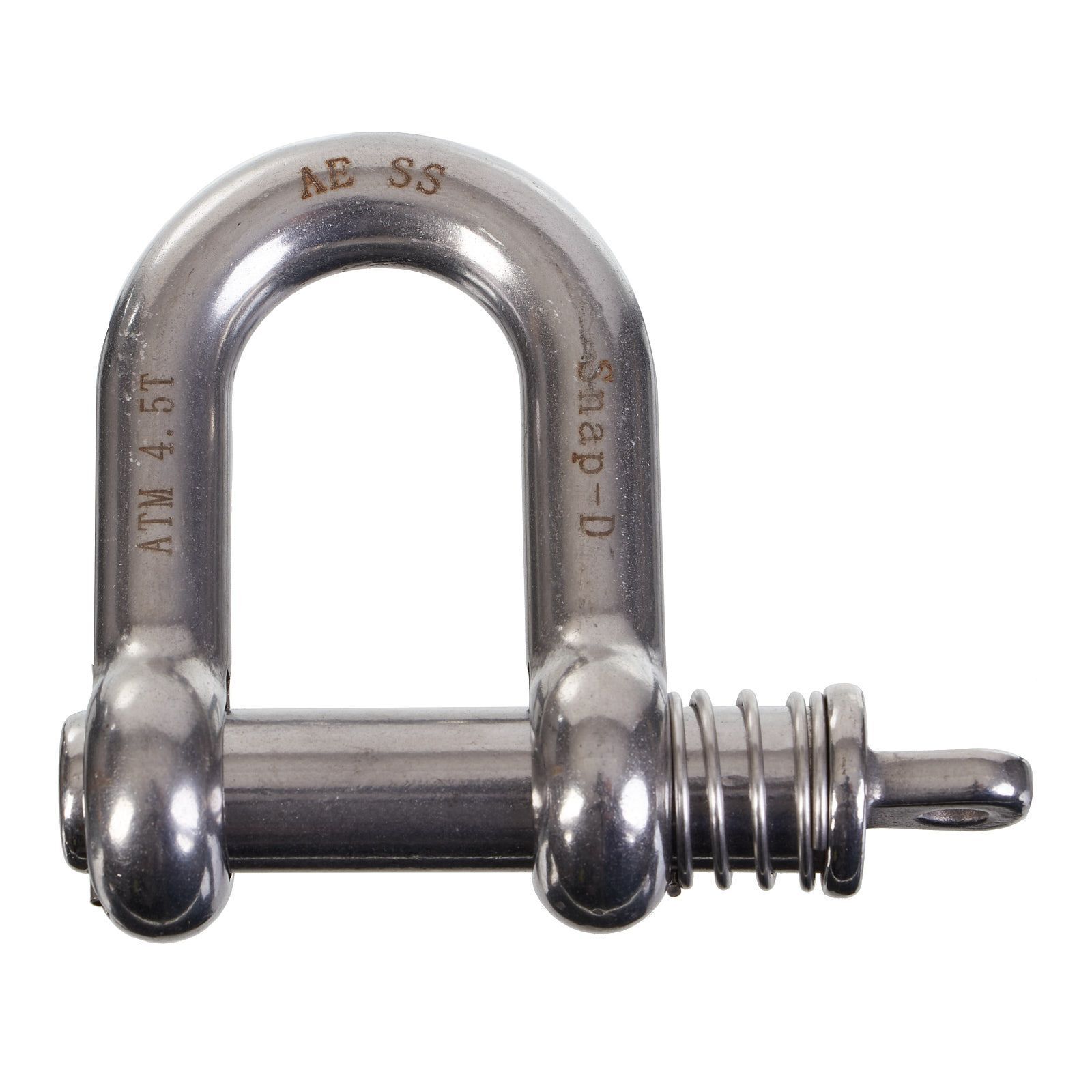

Snap-D 17mm D Shackle Stainless Steel

THE 17MM D SHACKLE.

    304 Stainless Steel
    4500kg Aggregate Trailer Mass (ATM/MTM)
    Captive pin
    30mm leg width

With a 17mm main pin and 4500kg towing mass, this shackle is your all-rounder and heavy lad towing. Ideal for the boat or builder's trailer. Put this shackle to use any way you see fit, even attaching the sea anchor to the boat.

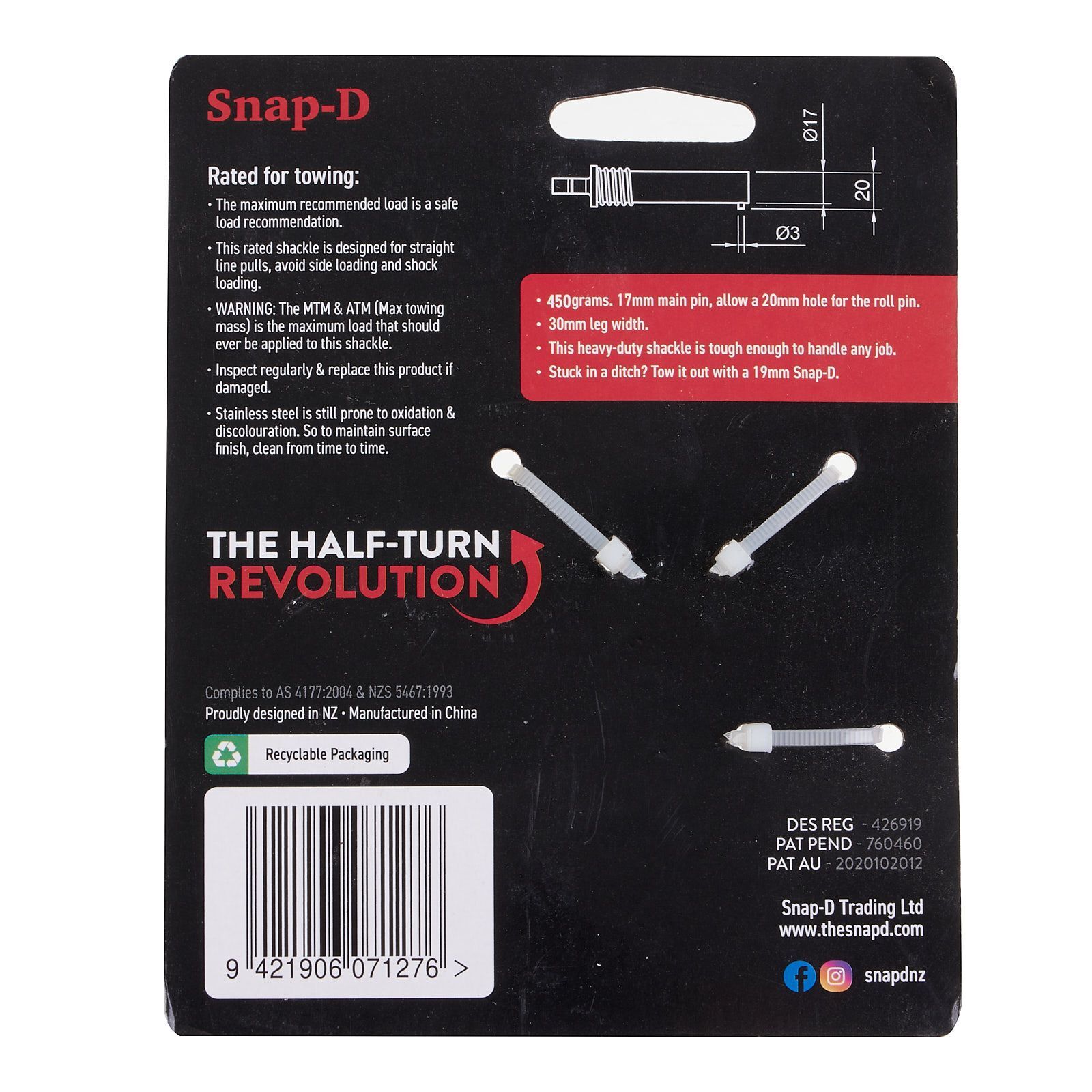

    Allow 19mm for the roll pin to fit through the tow bar hole
    Designed in NZ by a kiwi, manufactured in China under a license
    Snap-D is a New Zealand owned company
    All shackles are compliant with AS2741 & NZS5467 standards

Please note: By law the combined (ATM) rating of the shackle or shackle's being used must be 1.5 times greater than the total weight of the trailer being towed. For your convenience, we have included a maximum recommended towing mass which is the ATM divided by 1.5, please ensure that the total mass of your load does not exceed our maximum recommended towing mass.

MTM: Maximum towing mass.

ATM: Aggregate trailer mass.
