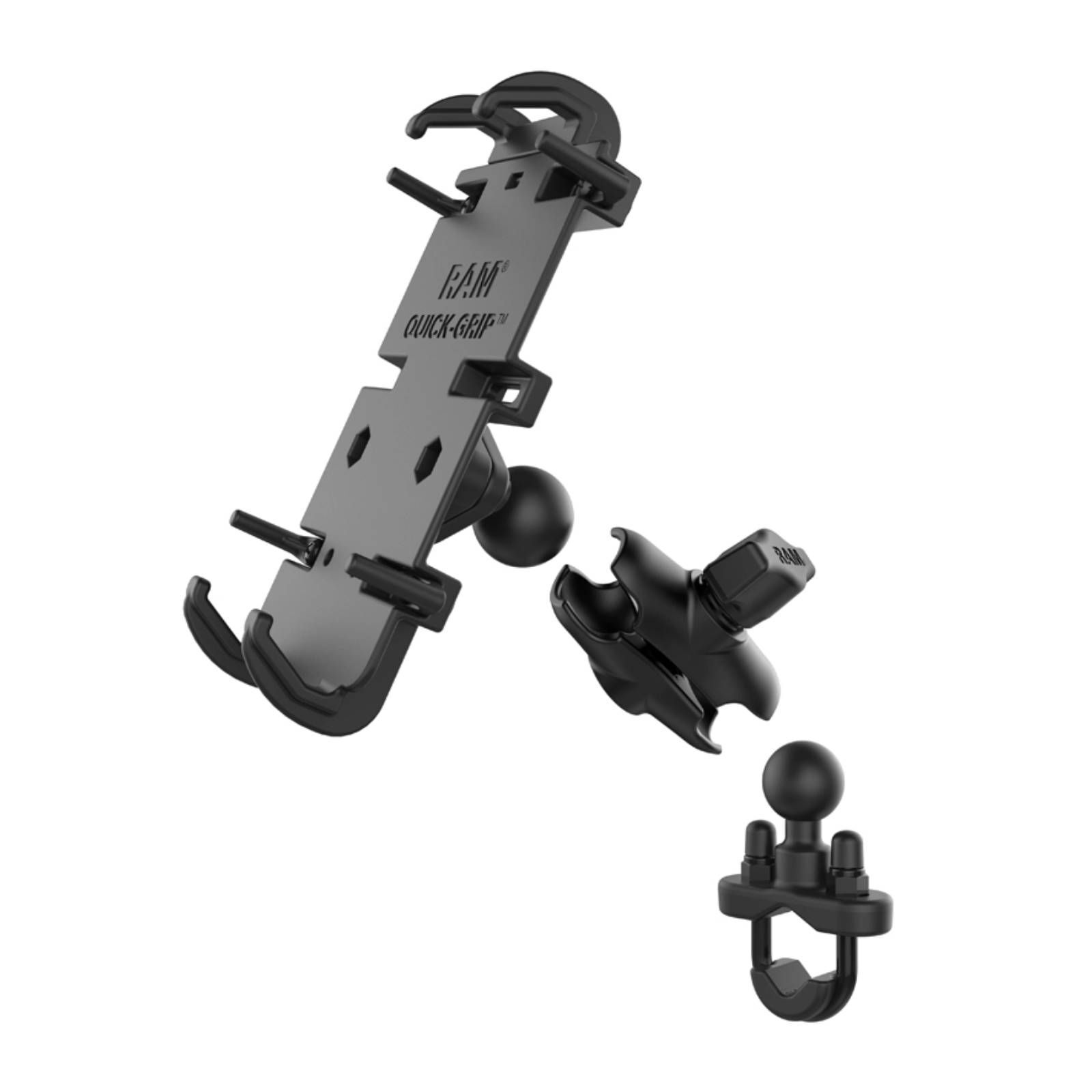

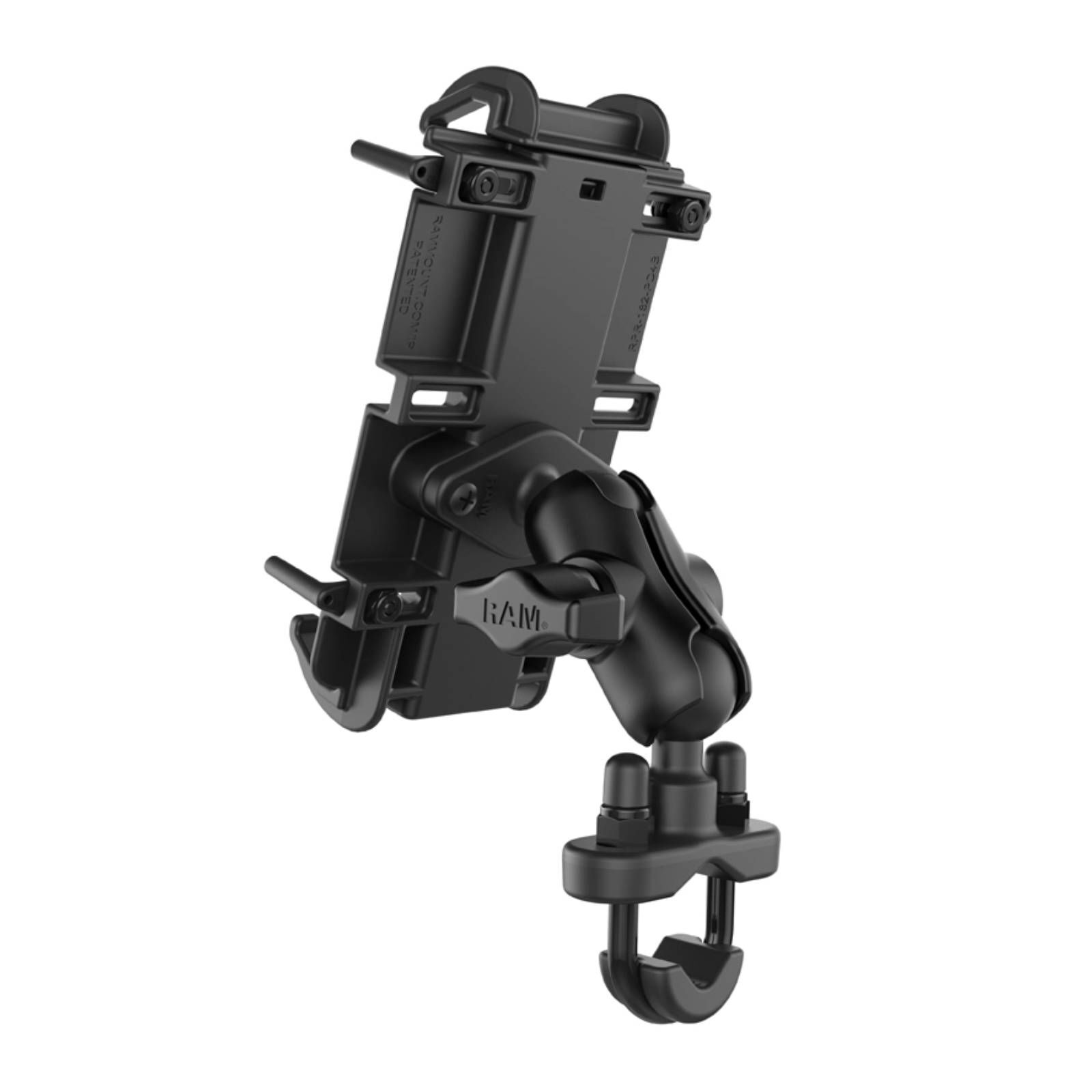

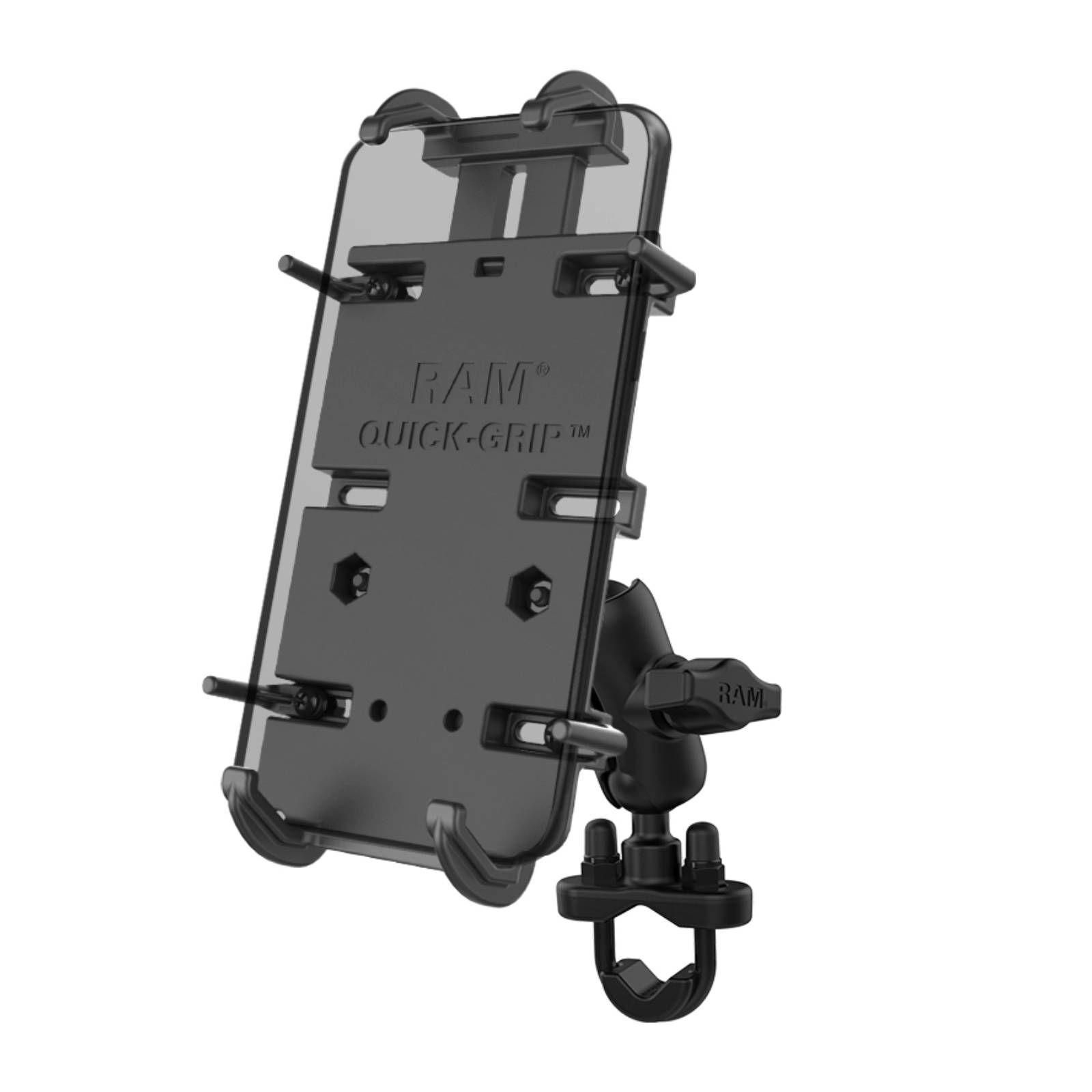

Ram Quick-Grip Xl Phone Mount With Handlebar U-Bolt Base

This version of the spring-loaded RAM® Quick-Grip™ holder provides a secure fit for a variety of large phones and other devices. The adjustable side keepers ensure that devices like GPS units and Bluetooth speakers within the listed compatible dimensions will also fit in the holder. Included is a short RAM® double socket arm and zinc-coated handlebar U-Bolt base that accommodates rails from 0.5” to 1.25” in diameter.

Features:

    Spring-loaded holder features adjustable side supports that provide a secure fit for a variety of large phones and other devices; easily insert and remove your phone with one hand
    Includes U-bolt base that accommodates rails from 0.5" to 1.25" in diameter and a short length, B size RAM® double socket arm; ball and socket technology allows for near-infinite adjustability
    Made of powder-coated, marine-grade aluminium and high-strength composite for durability and reliability in the most demanding environments

Specifications:

    CLAMP RANGE: 0.5" (12.7mm) - 1.25" (31.7mm) diameter
    HOLDER DIMENSIONS: Height Range: 5.75" (146mm) - 8.25" (209.5mm), Width Range: 2.625" (66.675mm) - 3.625" (92mm), Max Depth: 0.72" (19mm)
    SOCKET-TO-SOCKET LENGTH: 1.75" (44.4mm)
    BALL SIZE: B Size (1", 25.4mm)

Assembly Hardware Included:

    x1 1/4"-20 U-Bolt for 0.5"(12.7mm) - 1" (25.4mm) Rails
    x1 1/4"-20 U-Bolt for 1" (25.4mm) - 1.25"(31.7mm) Rails
    x2 1/4"-20 Nylock Nuts
    x2 Rubber Caps
    x1 U-Bolt Spacer
