Hour Meter for Motorcycle Motorbike Quad Motocross Bike

Calculate Shipping

Description

UNIVERSAL HOUR METER

QUICK FACTS

Weight: 0.04kg

Compatibility: All motorcycle models (anything with a spark plug will work)

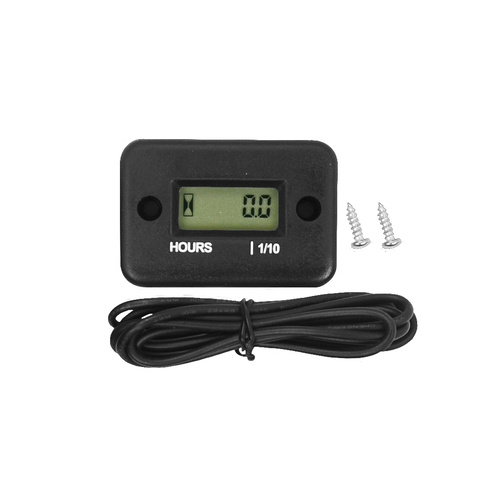

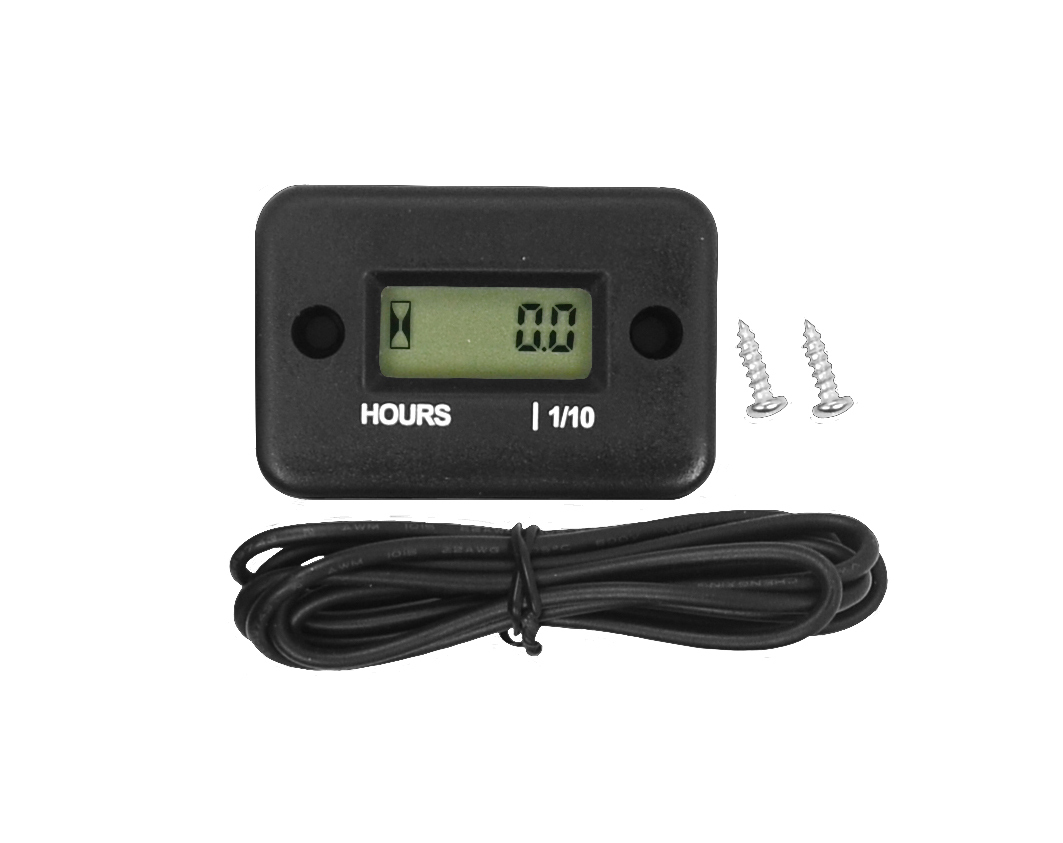

Hardware included: Meter, pick-up wire, two screws

Hour Meter Installation Method

1. Wrap the included pick-up wire around the spark plug wire five times. Start wrapping the pick-up wire about 4cm from the end of spark plug boot. Use a zip tie to secure the pick-up wire wrapping.

2. Before continuing the installation, insert the pick-up wire into the rear of the meter. Start the motor to make sure the meter is picking up the ignition signal. If it is, this will activate the timer on the meter and the icon on the left of the LCD will flash. You'll have to wait at least 6 minutes for the timer to increase the timer display (1/10 of an hour). If it is not picking up the ignition signal, slide the pick-up wrap closer to the spark plug boot.

3. If the meter is successfully picking up the spark signal, run and zip tie the pick-up along one of the throttle cables. Make sure the pick-up wire can not make contact with the engine. Also, make sure you leave enough slack (about 8cm) so removing the spark plug wire is possible. Keep in mind the general location of final mounting on the frame spare.

Securing Methods

a. Drill into your frame with a 2.5mm drill bit, then secure it to the frame with the two screws provided.

b. Use double sided tape on the back side of the meter and secure it to the frame using zip ties.
